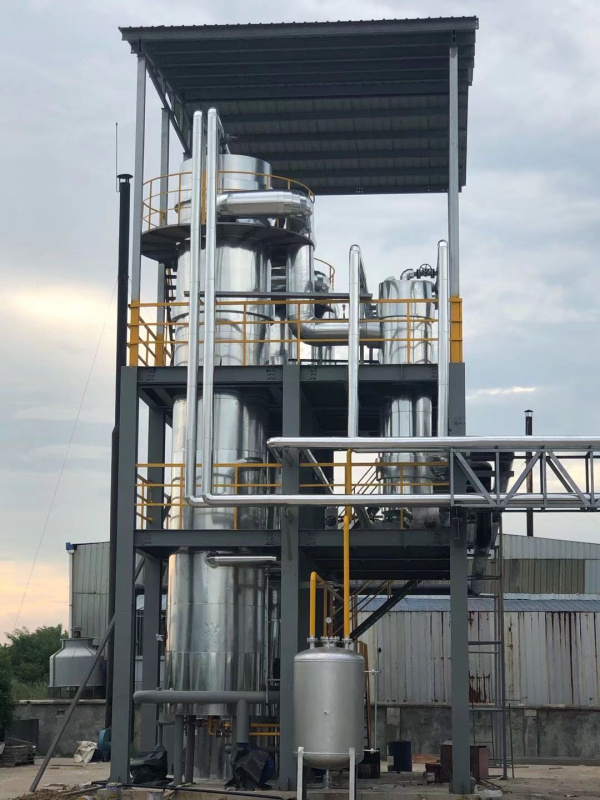

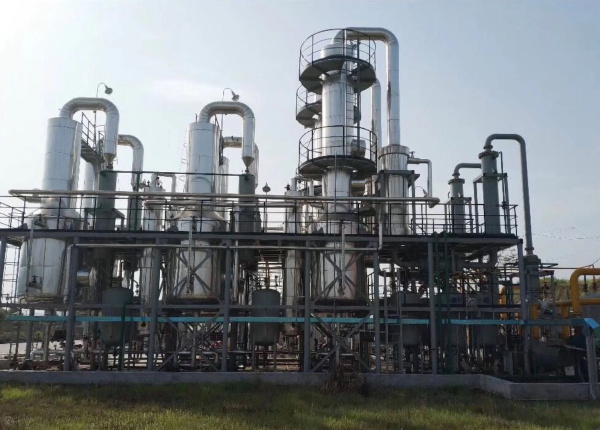

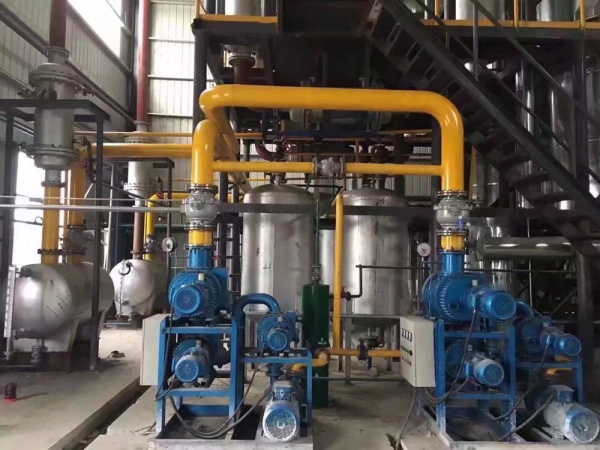

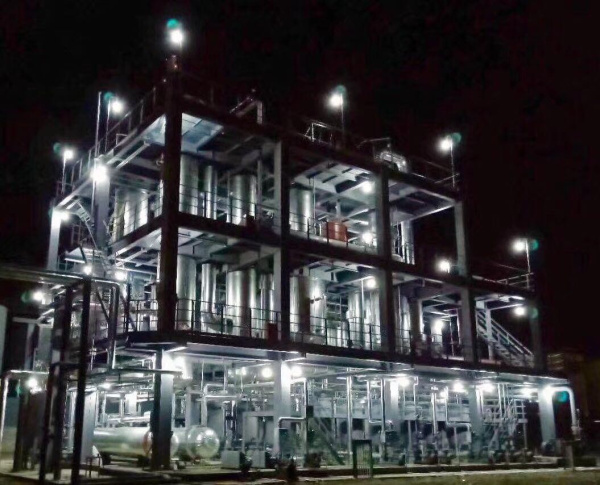

Waste engine oil refining equipment

1. Main technical features
1. This equipment adopts atmospheric catalytic cracking technology and crystal producing chemical extraction technology.
2. Equipped with relatively complete environmental protection equipment. (Such as waste gas recycling system and advanced anti-burning technology)
3. Unique and efficient decolorization and deodorization design, low cost to solve the color and peculiar smell of the product.
4. The output is high, and the yield of pure crude oil is about 85– -90%.
5. The equipment design is reasonable, the manufacturing technology is advanced, the degree of automation is high, and the safety facilities are complete.
6. Wide range of uses, one machine with multiple uses,
Second, the process
The crude oil that needs to be further processed is pumped into the cracking tank through an oil pump, and then grass-treated and heated under normal pressure to distill out the oil and gas.
The catalytic tower enters the condenser, and the liquefied part is condensed into oil. The non-liquefiable part is sent to the heating system through the exhaust gas recovery system and burned.
The condensed oil enters the oil-water separator to separate the water, and finally enters the refinery for decolorization and deodorization to produce refined oil.
Three, security
In the refining production process, the main components of non-liquefiable exhaust gas are C1 to C4 alkanes, and direct combustion has certain risks.
Risky. In our current production process, before burning it as a fuel, it is first passed through a safety device and a water seal.
So that it can be completely burned to achieve safe production. Unique explosion-proof device. Let your production worry-free.
