Methylamine catalyst

Email: zsm-5@zsm-5.cc

The methylamine catalyst is a catalyst for producing methylamine by a gas phase catalytic amination process using methanol and ammonia as raw materials. The catalyst has excellent activity, stability and selectivity, and its reaction performance reaches the level of international similar products.

Second, the quality indicators

Table 1. Methylamine catalyst physical property index

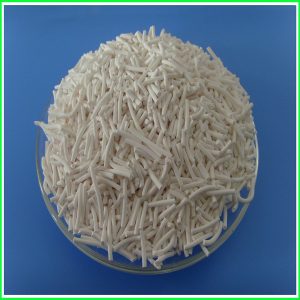

Appearance White cylinder or clover

Size, mm Φ3.5×5-20

Bulk density, g/ml 0.60~0.75

Compressive strength, N ≥ 80

Main composition mordenite



Table 2. Methylamine catalyst operating conditions and technical indicators

Project indicator

Reaction temperature, °C 360～450

Reaction pressure, MPa 1.5～4.0

Liquid space velocity, h-1 1.5～3.5

Ammonia / methanol ratio 1.2 ~ 3.0

Methanol conversion rate, % ≥97

Catalyst life, month 12

Third, product use

Used for the vapor phase amination of methanol to synthesize methylamine.

Fourth, packaging and storage

Packed in clean, dry, sealed paper drums or iron drums with a net weight of 25kg per drum. Store in a dry and ventilated warehouse to avoid exposure and rain. Transport should avoid violent collisions to prevent damage.
